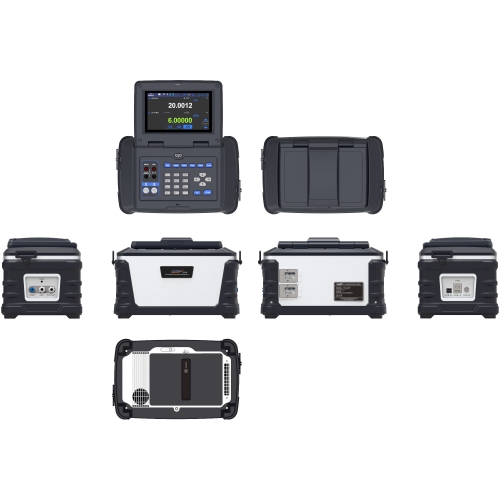

Additel 761A-500/1K Geautomatiseerde drukkalibrator

Prijs op aanvraag

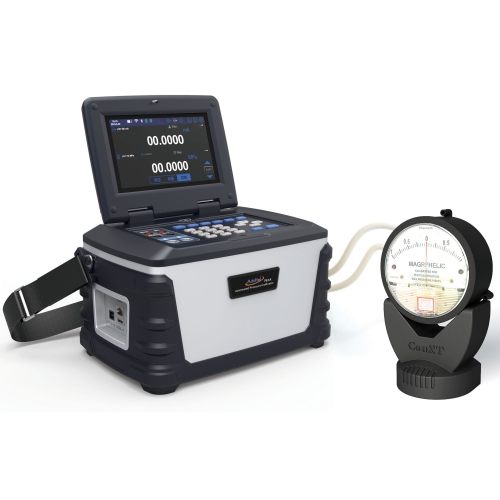

Met een ingebouwde krachtige elektronische pomp en precisiedrukregelaar, bieden de draagbare geautomatiseerde drukcalibrators uit de 761-serie een turn-key oplossing voor kalibratie van meters, transmitters en schakelaars, zowel in het veld als in het laboratorium.

Offerte

Productbeschrijving
Extra informatie
Video
Downloads

Bij Additel zijn innovatie en voortdurende verbetering een belangrijk onderdeel van de bedrijfscultuur en de producten die ze introduceren. Toen men de Additel 761A-serie kalibratoren wilden leveren, wisten men dat er baanbrekende verbeteringen en extra waarde moest worden geboden aan de bestaande lijn kalibratoren (de Additel 761-serie). De ADT761A heeft veel verbeteringen ten opzichte van het vorige model: verhoogd drukbereik tot 1.000 psi (70 bar), verwisselbare interne drukmodules, optionele precisie drukmodules tot 0,01% FS, verhoogde snelheid naar de maximale druk, mogelijkheid om twee externe drukmodules uit te lezen, touchscreen beeldscherm, Wi-Fi , Bluetooth en Ethernet-communicatie, dubbele levensduur van de batterij en meer!

AMS Driver

Er is nu ook een driver voor AMS van Emerson beschikbaar. De kalibratie-assistent "SNAP-ON-applicatie" vormt een interface met documenterende kalibrators om de kalibraties van HART, Foundation Fieldbus, IEC-goedgekeurde WirelessHART® en conventionele apparaten te beheren. Hiermee kunt u uw apparaten eenvoudig groeperen in testschema's en kalibratieroutes voor maximale efficiëntie.Breng gegevens over tussen uw kalibrator en de AMS Device Manager om handmatige records en de mogelijkheid van fouten te elimineren. Door de Additel 761A zelf documenterende kalibrator te gebruiken, kunt u ook automatisch As-Found / As-Left-informatie in de AMS Device Manager-database controleren. Open de kalibratiegeschiedenis van elk apparaat en genereer kalibratiecertificaten en -rapporten als u papieren documentatie nodig hebt.

ADT761A-500
De Additel 761A-500 genereert en regelt druk van vacuüm tot 500 psig (35 bar.g). Zowel overdruk (gauge) als absolute drukken kunnen worden gerealiseerd door middel van de ingebouwde barometer. Ieder instrument wordt geleverd met een CP500 drukmodule (-12.5 tot 500 psig) voor de hoge druk en de lage druk kan vooraf worden geconfigureerd op basis van de beschikbare modules die aan uw behoefte voldoen, tot een druk van 10 psig (0.7 bar.g).

ADT761A-1K
De Additel 761A-1K genereert en regelt druk van vacuüm tot 1.000 psig (70 bar.g). Dit instrument kan 70 bar druki bereiken in minder dan 45 seconden. Net als de ADT761A-500 kunnen zowel overdruk (gauge) als absolute drukken worden gerealiseerd dankzij de ingebouwde barometer. Elk instrument wordt geleverd met een CP1K-module (-12,5 tot 1.000 psig) voor het hoge bereik en het lage bereik kan vooraf worden geconfigureerd op basis van de verschillende beschikbare modules tot 30 psig (2 bar.g).

Pressure Specifications
Specification	761A-LLP	761A-D	761A-500	761A-1K	761A-1.5K	761A-BP
Max Pressure Range	30 inH2O (75 mbar)	35 psi (2.5 bar)	500 psig (35 bar.g)	1,000 pisg (70 bar.g)	1,500 pisg (100 bar.g)	1,200 hPar
Min Pressure Range	-30 inH2O (-75 mbar)	-13.5 psi (-0.95 bar)	-13 psi (-0.9 bar)	-13 psi (-0.9 bar)	-13 psi (-0.9 bar)	100 hPa
Accuracy(1)	0.05%FS	0.02%FS	0.01%FS or 0.02%FS²	0.01%FS or 0.02%FS²	0.01%FS or 0.02%FS²	0.01%FS
Stability	0.003%FS or 0.05 Pa	0.003%FS	0.003%FS	0.003%FS	0.003%FS	0.02 hPa
Pressure Type	Differential, Gauge	Differential, Gauge	Gauge, Absolute	Gauge, Absolute	Gauge, Absolute	Absolute
Over Range Indication	110%
Resolution	6 digits
Measurement Units	Pa, hPa, kPa, mPa, bar, mbar, psi, mmHg@0°C, cmHg@0°C, mHg@0°C, inHg@0°C, inH2O@4°C, mmH2O@4°C, cmH2O@4°C,mH2O@4°C, mmH2O@20°C, cmH2O@20°C, mH2O@20°C, inH2O@20°C, inH2O@68°F, kgf/cm2, mtorr, torr, lb/ft2, tsi, custom
Barometric Accuracy	N/A	N/A	55 Pa	55 Pa	55 Pa	N/A

[1] One year accuracy (including 1 year stability). FS specification applies to the span of the module range.
[2] Specification based on gauge measurement. An additional 55 pa uncertainty will need to be included when measuring in absolute mode.
Applicable only for use with the ADT761A-500, ADT761A-1K and ADT761A -1.5K.

* Additel 761A calibrators support 161 series intelligent digital pressure modules that are available for gauge, vacuum pressure from -15 psi to 60,000 psi (-1 bar to 4,200 bar). For detailed specifications refer to the 161 series pressure modules datasheet.

Electrical Specifications
Specification	Range	Resolution	Accuracy	Note
mA Measure	-25 to 25 mA	0.1 μA	±(0.008%RD+1.0 μA)	Impedance <10Ω
mA Measure	-50 to 50 mA	0.1 μA	±(0.008%RD+2.0 μA)	Impedance <10Ω
V Measure	-300 to 300 mV	1μV	±(0.008%RD+6 μV)	Impedance <1GΩ
V Measure	-5 to 5 V	20 μV	±(0.008%RD+100 μV)	Impedance >1GΩ
	-12 to 12 V	100 μV	±(0.008%RD+320 μV)	Impedance >1MΩ
	-30 to 30 V	100 μV	±(0.008%RD+600 μV)	Impedance >1MΩ
Loop Power Source	24V	N/A	±1 V	50 mA (Max Loading)
mA Source	0.2 to 2.5 mA or 2.5 to 25 mA	0.1 μA	0-2.5 mA: 0.008%RD+0.2 μA	20 mA @ 1KΩ
mA Source	0.2 to 2.5 mA or 2.5 to 25 mA	0.1 μA	0-25 mA: 0.008%RD+1.0 μA	20 mA @ 1KΩ
Power Source	16 to 30 V	1 V	±1 V	70 mA (Max Loading)
V Source	0 to 16 V	0.25 mV	0.008%RD+500μV
V Source	0 to 16 V	0.25 mV	0.008%RD+500μV
Pressure Switch	Mechanical Switch, Live Mechanical Switch, NPN Switch, PNP Switch	N/A	N/A	Response time<10 ms. If the switch is live, voltage range will be (3-30) V
Temperature Compensation	18°C to 28°C
Temperature Coefficient	Outside of 18 °C to 28 °C: <± (0.0005%RD + 0.00005%FS) /°C
Misuse Protection	Up to 30 V on any two sockets
Pressure Switch Test	•
Hart / Profibus PA	•

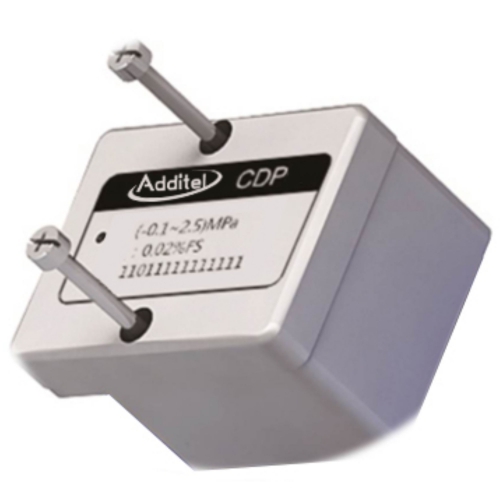

Internal Module Specification and Compatibility
Model	inH2O	mbar	Media	Accuracy (%FS)(1)	Burst Pressure	761A-LLP	761A-D	761A-500	761A-1K
ADT155-20-DP025	±0.25	±0.62	G	0.2 (2)	100x	•
ADT155-10-DP050	±0.5	±1.25	G	0.1(3)	100x	•
ADT155-05-DP1	±1	±2.5	G	0.05(4)	100x	•
ADT155-05-DP2	±2	±5	G	0.05(4)	100x	•
ADT155-05-DP5	±5	±10	G	0.05(4)	50x	•
ADT155-05-DP10	±10	±25	G	0.05(4)	20x	•	•
ADT155-05-DP20	±20	±50	G	0.05	20x	•	•
ADT155-05-DP30	±30	±75	G	0.05	20x	•	•
ADT155-05-DP50	±50	±160	G	0.05	3x		•
ADT155-02-DP150	±150	±350	G	0.02	3x		•
ADT155-02-DP300	±300	±700	G	0.02	3x		•
ADT155-02-DP400	-380 to 400	-950 to 1K	G	0.02	3x		•
ADT155-02-DP800	-380 to 800	-950 to 2K	G	0.02	3x		•
ADT155-02-DP1K	-380 to 1K	-950 to 2.5K	G	0.02	3x		•

Internal Module Specification and Compatibility (Gauge Pressure)
Model	psig	bar.g	Media	Accuracy (%FS)(1)	Burst Pressure	761A-LLP	761A-D	761A-500	761A-1K	761A-1K
ADT155-01/02-CP10	±10	±0.7	G	0.01^[7]/ 0.02(5)^[5]	3x		•^[7]	•
ADT155-01/02-CP15	-13.5 to 15	-0.95 to 1	G	0.01^[7]/ 0.02(5)^[5]	3x		•^[7]	•
ADT155-01/02-CP30	-13.5 to 30	-0.95 to 2	G	0.01^[7]/ 0.02(5)^[5]	3x		•^[7]	•	•	•
ADT155-01/02-CP35	-13.5 to 35	-0.95 to 2.5	G	0.01^[7]/ 0.02(5)^[5]	3x		•^[7]	•	•
ADT155-01/02-CP50	-13.5 to 50	-0.90 to 3.5	G	0.01/ 0.02(5)^[5]	3x			•	•	•
ADT155-01/02-CP100	-13.5 to 100	-0.90 to 7	G	0.01/ 0.02(5)^[5]	3x			•	•
ADT155-01/02-CP150	-13.5 to 150	-0.90 to 10	G	0.01/ 0.02(5)^[5]	3x			•	•	•
ADT155-01/02-CP200	-135 to 200	-0.90 to 14	G	0.01/ 0.02(5)^[5]	3x			•	•
ADT155-01/02-CP300	-13.5 to 300	-0.90 to 20	G	0.01/ 0.02(5)^[5]	3x			•	•	•
ADT155-01/02-P500	-13.5 to 500	-0.90 to 35	G	0.01/ 0.02(5)^[5]	3x			•	•
ADT155-01/02-CP600	-13.5 to 600	-0.90 to 40	G	0.01/ 0.02(5)^[5]	3x				•	•
ADT155-01/02-CP1K	-13.5 to 1K	-0.90 to 70	G	0.01/ 0.02(5)^[5]	3x				•	•
ADT155-01/02-CP1.5K	-13.5 to 1.5K	-0.90 to 100	G	0.01/ 0.02(5)^[5]	3x					•

[2] Accuracy is a 6 months spec, 1-year long-term drift is 0.2%FS.

[3] Accuracy is a 6 months spec, 1-year long-term drift is 0.1%FS.

[4] Accuracy is a 6 months spec, 1-year long-term drift is 0.05%FS.

[5] Specification based on gauge measurement. An additional 55 Pa uncertainty will need to be included when measuring in absolute mode.

[6] The low module pressure range may be outside the pressure range of the calibrator.

Applicable only for use with the ADT761A-500, ADT761A-1K and ADT761A-1.5K.

[7] 0.01%FS accuracy specification not available for 761A-D models.

* ADT155 Pressure modules are calibrated in psi & inH2O.

General Specifications
Specification	Description
User Interface	Color touch screen and/or keypad operation
	Four total: one electrical, high or low internal
Channels	pressure module, two external pressure modules
Enclosure IP Rating	IP31
Battery	Rechargeable Li-Ion battery, typically 16 hours of operation, recharges in less than 5 hours.
Power	Rechargeable Li-Ion battery, external power 110/220 V power adapter 27 V
Display	7” TFT touch screen 800 x 480 color
Communications	USB, LAN, Bluetooth, Wi-Fi
Weight	<17.52 lb (7.95 KG)
Size	11.77 x 7.60 x 7.56 in (299 x 193 x 192 mm)
Certification	ISO17025 accredited certificate of calibration with NIST-traceable data
Data Storage	6 GB
Data Logging	Up to 1,000,000 readings (data and time stamped)
Task documentation	Up to 1000 tasks can be stored with data
Automation Functions	Switch test, auto step, leak test
User Interface Localization	English, German, French, Italian, Spanish, Portuguese, Chinese, Japanese, and Russian
Pump life	>100,000 cycles
Environmental Specifications	Operating temperature: 32 °F to 122 °F( 0°C to 50°C)
	Compensated temperature: 32 °F to 122 °F( 0°C to 50°C)
	Storage temperature: -20°C to 60°C ( -4 °F to 120 °F)
	Humidity: <90%, non-condensing
Vibration and Shock	Vibration: 4g (20 to 2,000 Hz)
Vibration and Shock	Shock: 8g, 1 meter drop test
Compliance	CE
Software Compatibility	ACal, Additel Land and Additel Link for access via mobile application
Warranty	1 year
Hose and Filter End of Life	The estimated End of Life (EOL) expectancy for all accessory hoses and filters (pneumatic and hydraulic) is approximately 10 years and should be replaced at the first sign of wear or damage

Pressure Range
Type	Model	Pressure Range	High-Range Pressure Module			Low-Range Pressure Module
			Range		Accuracy	Range	Accuracy
Low / Differential Pressure	ADT761A-LLP-05-DPXX	-75 to 75 mbar (-30 to 30 inH2O)		DP30: -75 to 75 mbar (-30 to 30 inH2O)	0.05% FS	User selectable from DP20 to DP025	See Internal Module Table
	ADT761A-D-02-DPXX-X	-0.95 to 2.5 bar (-13.5 to 35 psi)		CP35: -0.95 to 2.5 bar (-13.5 to 35 psi)	0.02% FS	User selectable from DP10 to CP30	See Internal Module Table
Standard Accuracy Gauge / Absolute Pressure	ADT761A-500-XX-CPXX-X	-0.9 to 35 bar (-13 to 500 psi)		CP500: -0.9 to 35 bar (-13 to 500 psi)	User selectable: 0.01%FS or 0.02%FS	User selectable from CP10 to CP300	See Internal Module Table
	ADT761A-1K-XX-CPXX-X	-0.9 to 70 bar (-13 to 1000 psi)		CP1K: -0.9 to 70 bar (-13 to 1000 psi)	User selectable: 0.01%FS or 0.02%FS	User selectable from CP30 to CP600	See Internal Module Table
	ADT761A-1.5K-XX-CPXX-X	-0.9 to 100 bar (-13 to 1500 psi)		CP1.5K: -0.9 to 100 bar (-13 to 1500 psi)	User selectable: 0.01%FS or 0.02%FS	User selectable from CP30 to CP1K	See Internal Module Table
Barometric Pressure	ADT761A-BP-X	100 to 1200 hPa (1.45 to 17.41 psi)		NA	NA	100 to 1200 hPa (1.45 to 17.41 psi)	0.01%
