ADT282

Additel 282 Twee Kanaals Referentie Thermometer Uitlezing

Prijs op aanvraag

De Additel 282 Referentie Thermometer Uitlezing levert de best mogelijke nauwkeurigheid en functies in de palm van je hand!

Offerte

Productbeschrijving
Extra informatie
Video
Downloads

Additel's 282 Referentie Thermometer Uitlezing levert de best mogelijke nauwkeurigheid en functies in de palm van je hand! Met een nauwkeurigheid die vergelijkbaar is met die van thermometers van laboratoriumkwaliteit, kan de ADT282 zelfs uw meest kritische metingen aan. Deze uiterst nauwkeurige uitlezing is voorzien van dubbele analoge kanalen die zijn ontworpen om vergelijkingsmetingen te vergemakkelijken en aan al uw behoeften op het gebied van temperatuurmeting te voldoen. Het gebruiksvriendelijke touchscreen maakt het navigeren door de goed ontworpen menu's een tijdbesparende en plezierige ervaring. De slimme connectoren, type Lemo, zorgen ervoor dat de kalibratieinformatie van uw sonde nooit ter discussie staat. De ADT282 referentie thermometer uitlezing maakt metrologie eenvoudig en wordt snel uw eerste keuze wanneer betrouwbare temperatuurmetingen een must zijn.

Technical Specifications

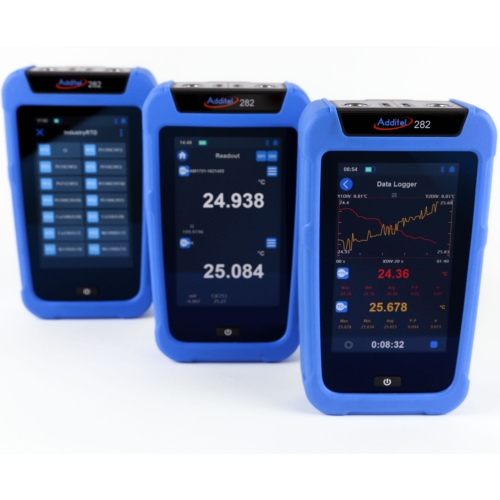

Display	5.0 inch 480 x 800 TFT LCD capacitive screen
Size	16.97" x 4.13" x 2.04" (177 mm x 105 mm x 52 mm)
Weight	1.5 lbs. (0.65 Kg)
Power Supply	6600mAh, 23.8Wh lithium battery, charging time 4~6 hours, battery pack can be charged independent. Battery life typically 16 hours
Environment	Specification guaranteed temperature range: (10~30) °C Working Temperature: (-10~50) °C Storage temperature: (-20~70) °C Humidity: 0% ~ 95% RH, non-condensing
Warm-Up Time	10 minutes
Ports Protection Voltage	50V max
CE Certificate	TUV IEC61326,IEC61010
Rohs Compliance	Rohs II Directive 2011/65/EU，EN50581:2012
IP Protection Level	IP67, 1 meter drop test

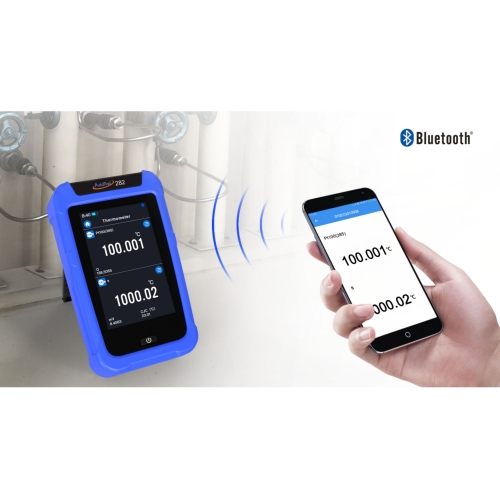

Communication	Isolate USB-TYPEC (slave), Bluetooth BLE

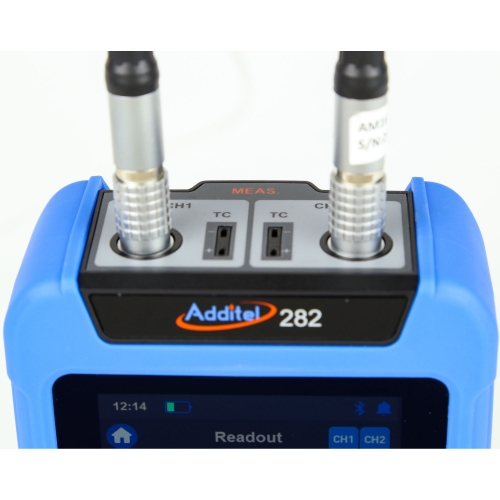

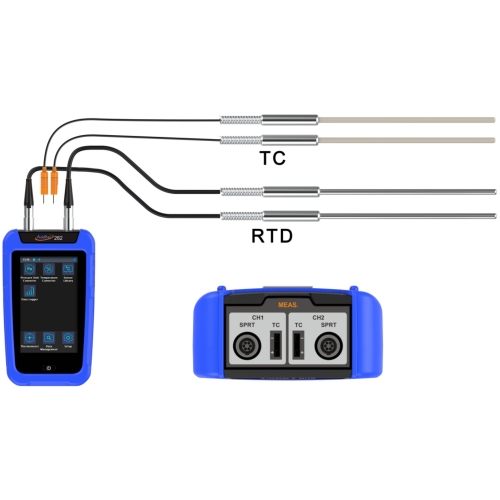

Input Channels	CH1, CH2 analog channel, 6 pins smart lemo ports for RTD probe；MINI-TC ports for TC probe
Measurement Display	Single channel, dual channel, differential (e.g T1-T2)
Measuring Rates	CH1, CH2 analog channels alternately and cyclically measure RTD measuring rate: 1.6S/single channel, 1.6S/dual channel TC measuring rate: 0.8S/single channel, 0.8S/dual channel
Measurement Units	°C, °F, K
Statistics	Max, Min, Avg

Measurement Specifications
PRT Measurement	RTD Types	ITS-90, CVD, Ohms, Pt100 (385), Pt10 (385), Pt25 (385), Pt50 (385), Pt100 (3916), Pt100 (3926), Pt100 (391), Cu100 (428), Cu50 (428), Cu10 (427), Ni100 (617), Ni100 (618), Ni120 (672), and custom RTD
	Resistance Accuracy	0~400Ω: ±0.5mΩ@(0~20Ω),±25ppm@(20~400Ω)
	Measurement range	-200°C ~ 850°C
	Resolution	±0.1mΩ or 0.001°C
	Connection Type	4-wire smart connection
	Excitation Current	1 mA - alternating constant current
	Temperature Coefficient	±2ppm FS/°C (-10°C~10°C and 30°C~50°C)
TC Measurement	TC Types	mV, S, R, B, K, N, E, J, T, C, D, G, L, U, LR, A, 10uV/°C, 1mV/°C, Standard TC
	Electrical Measurement	-10~75mV: 50ppm RDG+2uV
	TC measurement range	-270°C ~ 1800°C
	Resolution	±0.1uV or 0.001°C
	Connection Type	Mini-TC
	CJC compensation methods	Internal, external or manual entry
	Temperature Coefficient	±5ppm FS/°C (-10°C~10°C and 30°C~50°C)

Accuracy (°C)
Temperature	ADT282 Readout Only in Temperature	ADT282 Readout with Selected Probes*
Temperature	ADT282 Readout Only in Temperature	AM1760	AM1751	AM1730
-200	0.005	0.013	0.017	0.017
0	0.006	0.009	0.011	0.011
100	0.009	0.014	0.016	0.016
232	0.013	0.019	0.021	0.021
420	0.018	0.027	0.029	0.029
660	0.026	0.040	0.043	N/A
*Includes readout accuracy, probe calibration, and probe drift.(K=2)

Thermocouple Measurement (Environment Temperature: 20±10^oC)
Type	Temperature Range (^oC)		Accuracy (^oC) External CJC compensation (1 year)	Accuracy (^oC) Internal CJC compensation (1 year)
S	-50 to 1768	-50~0	0.51	0.53
		0~100	0.37	0.40
		100~1768	0.28	0.32
R	-50 to 1768	-50~0	0.54	0.56
		0~200	0.38	0.41
		200~1768	0.25	0.29
B	0 to 1820	200~300	1.01	1.02
		300~500	0.66	0.68
		500~800	0.41	0.44
		800~1820	0.28	0.32
K	-270 to 1372	-250 to -200	0.48	0.50
		-200 to -100	0.15	0.21
		-100 to 600	0.08	0.17
		600 to 1372	0.14	0.21
N	-270 to 1300	-250 to -200	0.76	0.77
		-200 to -100	0.22	0.27
		-100 to 1300	0.12	0.19
E	-270 to 1000	-250~-200	0.26	0.30
		-200~-100	0.10	0.18
		-100~700	0.06	0.16
		700~1000	0.08	0.17
J	-210~1200	-210~-100	0.13	0.20
		-100~700	0.06	0.16
		700~1200	0.10	0.18
T	-270 to 400	-250~-100	0.36	0.39
		-100~0	0.08	0.17
		0~400	0.05	0.16
C	0 to 2315	0 to 1000	0.16	0.22
		1000 to 1800	0.26	0.30
		1800 to 2315	0.42	0.45

D	0~2315	0~100	0.21	0.26
		100~1200	0.16	0.22
		1200~2000	0.27	0.31
		2000~2315	0.42	0.45
G	0 to 2315	50~100	0.60	0.62
		100~200	0.38	0.41
		200~400	0.24	0.28
		400~1500	0.16	0.22
		1500~2315	0.32	0.35
L	-200 to 900	-200 to -100	0.07	0.17
		-100 to 400	0.06	0.16
		400 to 900	0.07	0.17
U	-200 to 600	-200 to 0	0.14	0.21
U	-200 to 600	0 to 600	0.05	0.16
LR	-200~800	-200~0	0.09	0.17
LR	-200~800	0~800	0.06	0.16
A	0~2500	0~1200	0.20	0.25
		1200~2000	0.33	0.36
		2000~2500	0.48	0.50

Secondary PRT Information
Specification	AM1710 Series	AM1730 Series	AM1751 Series	AM1760 Series
Temperature Range [3]	-60°C to 160°C	-200°C to 420°C	-200°C to 670°C	-200°C to 670°C
Resistance at 0°C	Nominal 100Ω
Temperature Coefficient	0.003925 Ω / Ω / °C
Calibrated Accuracy (k=2)[2][3]	±0.025°C at -40°C	±0.025°C at -40°C	±0.025°C at -40°C	±0.010°C at -196°C
	±0.015°C at 0.01°C	±0.015°C at 0.01°C	±0.015°C at 0.01°C	±0.006°C at 0.01°C
	±0.025°C at 160°C	±0.035°C at 420°C	±0.035°C at 420°C	±0.015°C at 420°C
			±0.05°C at 661°C	±0.025°C at 661°C
Drift	±0.01°C at TPW after 100 hours at 160°C	±0.01°C at TPW after 100 hours at 420°C	±0.01°C at TPW after 100 hours at 661°C	±0.004°C at TPW after 100 hours at 661°C
Short Term Stability	±0.007°C			±0.002°C
Thermal Shock	±0.005°C after (10) thermal cycles from minimum to maximum temperatures			±0.002°C after (10) thermal cycles from minimum to maximum temperatures
Hysteresis	<=0.005°C			<=0.001°C
Self-heating	50 mW/°C			0.0015°C at 0.5mA
Response Time	9 seconds for 63% response to step change in water moving at 3 feet per second
Measurement Current	0.5 mA or 1 mA
Sensor Length	32 mm			42 mm
Sensor Location	5 mm from tip
Insulation Resistance	>1000 MΩ at room temperature
Sheath Material	Stainless Steel	Inconeltm
Dimension	AM1710-12-ADT	AM1730-12-ADT	AM1751-12-ADT	AM1760-12-ADT
	0.25 in dia X 12 in (6.35 mm X 305 mm)	0.25 in dia X 12 in (6.35 mm X 305 mm)	0.25 in dia X 12 in (6.35 mm X 305 mm)	0.25 in dia X 12 in (6.35 mm X 305 mm)
	AM1710-BEND-ADT	AM1730-BEND-ADT	AM1751-BEND-ADT	AM1760-BEND-ADT
	0.25 in dia X 12 in (6.35 mm X 305 mm), 90° bend at 7.4 inch (190 mm) from probe end	0.25 in dia X 12 in (6.35 mm X 305 mm), 90° bend at 9.6 inch (245 mm) from probe end	0.25 in dia X 12 in (6.35 mm X 305 mm), 90° bend at 9.6 inch (245 mm) from probe end	0.25 in dia X 12 in (6.35 mm X 305 mm), 90° bend at 9.6 inch (245 mm) from probe end
External Leads	Teflontm –insulated copper wire, 4 leads, 0.8 meters
Handle Dimension	15 mm (OD) x 65 mm (L)
Handle Temperature Range[1]	-50°C to 160°C	-50°C to 180°C
Calibration	NIST traceable calibration with data included. Accredited calibration available per request.
[1] Handle temperatures outside this range will cause damage to the probe.
[2] Includes calibration and 100 hour drift.
[3] Probe calibration ranges may differ from probe temperature ranges (see Calibrated Accuracy for calibration ranges).
*PRT Information from www.accumac.com
