Additel 273Ex

Handheld Druk Calibrator

Prijs op aanvraag

De Additel 273Ex is een intrinsiek veilige multi-functionele druk kalibrator met een kleurentouchscreen, smartphone-achtige interface, ingebouwde snelle testtaken en optionele HART-communicatiemogelijkheden.

Offerte

Productbeschrijving
Extra informatie
Video
Downloads

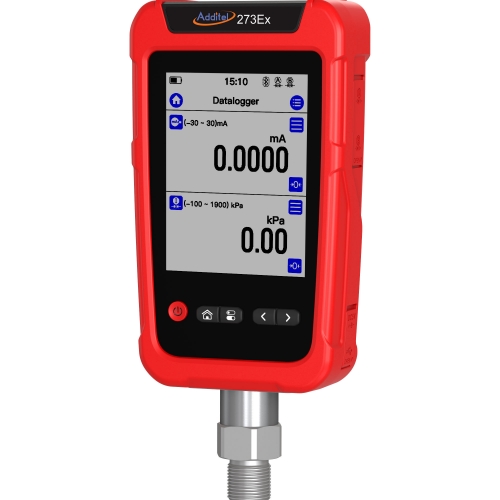

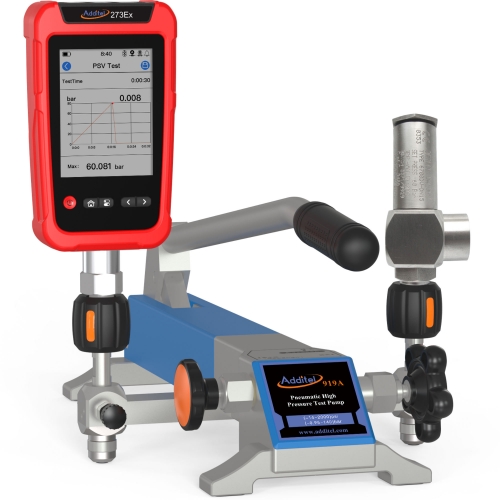

Additel's 273Ex is een intrinsiek veilige handheld multifunctionele drukkalibrator met een kleurentouchscreen, smartphone-achtige interface, ingebouwde snelle testtaken en optionele HART-communicatiemogelijkheden. Dit innovatieve Additel-product is een aanzienlijke verbetering voor explosieveilige veldtesten en kalibraties. De Additel 273Ex heeft een ingebouwde barometrische druksensor, zodat zowel absolute druk als overdruk eenvoudig kunnen worden gemeten. Met drie drukmodule-ingangen, één verwisselbaar aan de onderzijde en twee digitale ingangen aan de zijkant van het instrument, kan de gebruiker een uitvoering configureren waarmee gemakkelijk aan de behoeften van drukkalibratie en testen in vrijwel elke omgeving kan worden voldaan.

Functional Features	Details
Scaling	User can convert measured current, voltage and frequency values into pressure, temperature and flow values. Three conversion functions available: linearity, square and square root
Filtering	Average sliding filter (sampling number: 1 ~ 50) First-order linear filter (First-order coefficient: 0.01 ~ 1)
Switch	The measurement value will be automatically displayed at the moment the switch change of state. The latest 8 state changes will be stored in the memory.
Pressure Tare	Tare value is set through the user interface
Pressure stability indicator	Stability time and criteria is selectable
Power management	Backlight auto off Auto power off

General Specifications
Input Channels	Top: 1 electrical signal measurement channel, φ4mm banana jacks
	Right side: 2 channels for external digital pressure modules, 5-core dedicated aviation plug
	Bottom: embedded digital pressure module (model ADT158Ex), field switchable.
	Internal: 1 embedded atmospheric pressure sensor
Barometric Accuracy	±55 Pa
Measurement Rate	mV, V, mA & frequency: 3 times/sec
	Pressure module: 1~10 times/sec selectable (3 as default)
	Barometer: 1 time/sec
Power	4000mAh, 14.4Wh explosion-proof intelligent lithium battery, charging time = 6~8 hours, battery can be charged independently Typical working time 100 hours (measurement mode)
Environmental	Guaranteed temperature range of technical specifications: (-10 ~ 50)°C
	Operating temperature: (-20 ~ 50)°C
	Storage temperature: (-30 ~ 70)°C
	Humidity: 0% to 95% RH, non-condensing.
	Altitude: 3000 meters
Warm-up Time	10 min to fully meet technical specifications
Port Protection Voltage	30V max

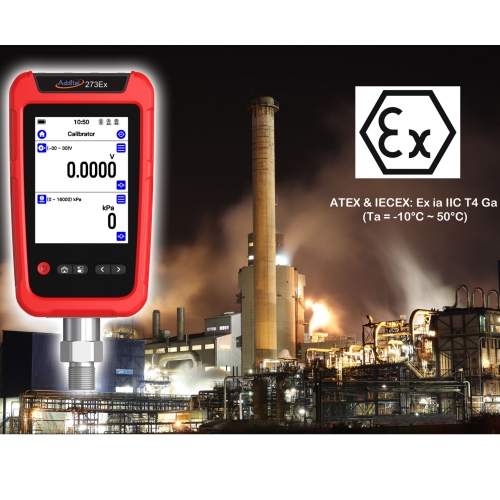

Explosion-proof Grade	ATEX & IECEX: Ex ia IIC T4 Ga (Ta = -10°C ~ 50°C)
	CSA: Class I, Division 1, Group A,B,C and D, T4 Ex ia IIC T4 Ga Class I, Zone 0, AEx ia IIC T4 Ga
	UKCA-EX
CE Certification	TUV IEC61326, IEC61010
Rohs Compliance	Rohs II Directive 2011/65/EU, EN50581:2012
Protection Level	IP67, 1 meter drop test
Communication	Isolate USB-Type C (slave), Bluetooth
Display	4.4-inch color display capacitive screen, transflective, with LED backlight
Size	6.97" x 4.13" x 2.04" (177 mm x 105 mm x 52 mm) which doesn't include bottom ADT158Ex.
Weight	1.98 lb (0.9 kg)
Warranty Time	1 year

Electrical Specifications
Specification	Range	Accuracy	Resolution	Note
Voltage Measurement	±300mV	0.015%RDG + 0.005%FS	1uV	Impedance: >100MΩ
Voltage Measurement	±30V	0.015%RDG + 0.005%FS	0.1mV	Impedance: >1MΩ
Current Measurement	±30mA	0.015%RDG + 0.005%FS	0.1uA	Impedance: < 40Ω
Frequency Measurement	0.01~50000Hz (auto range)	0.005% RDG + 2 last digit	6-digit auto-resolution	Min threshold voltage: 2.5V
Frequency Measurement	Units: Hz, kHz, MHz, CPM, CPH, s, ms, us
Switch On-Off Measurement	Inspection voltage: (3 ~ 30)V Response speed: < 10ms, supports wet and dry switch
Pulse Count	0 ~ 9999999, optional rising edge and falling edge Min threshold voltage: 2.5V
Loop Power	20V ± 10%, max output impedance: 320Ω, max load current: 25mA

Pressure Technical Specifications
Pressure resolution	4, 5, or 6 digit resolution (user selectable)
Temperature Compensation	-10°C~50 °C
Pressure Module Type	Built-in digital pressure module: ADT158Ex, for more detailed information, please see ADT 158Ex datasheet. External digital pressure module: ADT161Ex,for more detailed information, please see ADT 161Ex datasheet.
Specifications	Refer to the technical specification of the ADT158Ex and ADT161Ex
High Static Pressure and Differential Pressure Synthesis Index	Two modules must be with the same range; Typical Differential pressure accuracy of 0.002%FS or 0.02%RD, whichever is greater when using two 0.02%FS external modules. Typical Differential pressure accuracy of 0.002%FS or 0.05%RD, whichever is greater when using two 0.05%FS external modules.

Gauge Pressure^[1]
P/N	Pressure Range		Media^[2]	Accuracy (%FS)	Burst Pressure
P/N	(psi)	(bar)	Media^[2]	Accuracy (%FS)	Burst Pressure
V15	-15	-1.0	G	0.02	3×
GP2	2	0.16	G	0.05	3×
GP5	5	0.35	G	0.05	3×
GP10	10	0.7	G	0.02	3×
GP15	15	1.0	G	0.02	3×
GP30	30	2.0	G	0.02	3×
GP50	50	3.5	G , L	0.02	3×
GP100	100	7.0	G , L	0.02	3×
GP150	150	10	G , L	0.02	3×
GP300	300	20	G , L	0.02	3×
GP500	500	35	G , L	0.02	3×
GP600	600	40	G , L	0.02	3×
GP1K	1,000	70	G , L	0.02	3×
GP1.5K	1,500	100	G , L	0.02	3×
GP2K	2,000	140	G , L	0.02	3×
GP3K	3,000	200	G , L	0.02	3×
GP5K	5,000	350	G , L	0.02	3×
GP10K	10,000	700	G , L	0.02	2×
GP15K	15,000	1,000	G , L	0.05	2x
GP20K	20,000	1,400	G , L	0.05	1.5x
GP25K	25,000	1,600	G , L	0.05	1.5x
GP30K	30,000	2,000	G , L	0.05	1.5x
GP36K	36,000	2,500	G , L	0.05	1.5x
GP40K	40,000	2,800	G , L	0.05	1.35x
GP50K	50,000	3,500	G , L	0.1	1.2x
GP60K	60,000	4,200	G , L	0.1	1.1x

[1] Sealed gauge pressure for above 1000 psi
[2] G=Gas, L=Liquid

Compound Pressure
P/N
	Pressure Range		Media	Pressure Rating
	psi	bar	Media	Accuracy	Burst	Over Pressure
CP2	±2	±0.16	G	0.05% FS	3x	1.2x
CP5	±5	±0.35	G	0.02% FS	3x	1.2x
CP10	±10	±0.7	G	0.02% FS	3x	1.2x
CP15	±15	±1.0	G	0.02% FS	3x	1.2x
CP30	-15 to 30	-1 to 2.0	G	0.02% FS	3x	1.2x
CP50	-15 to 50	-1 to 3.5	G	0.02% FS	3x	1.2x
CP100	-15 to 100	-1 to 7.0	G,L	0.02% FS	3x	1.2x
CP300	-15 to 300	-1 to 20	G,L	0.02% FS	3x	1.2x
CP500	-15 to 500	-1 to 35	G,L	0.02% FS	3x	1.2x
CP600	-15 to 600	-1 to 40	G,L	0.02% FS	3x	1.2x
CP1K	-15 to 1,000	-1 to 70	G,L	0.02% FS	3x	1.2x
CP2K	-15 to 2,000	-1 to 140	G,L	0.02% FS	3x	1.2x
CP3K	-15 to 3,000	-1 to 200	G,L	0.02% FS	3x	1.2x
CP5K	-15 to 5,000	-1 to 350	G,L	0.02% FS	3x	1.2x
CP10K	-15 to 10,000	-1 to 700	G,L	0.02% FS	2x	1.2x
