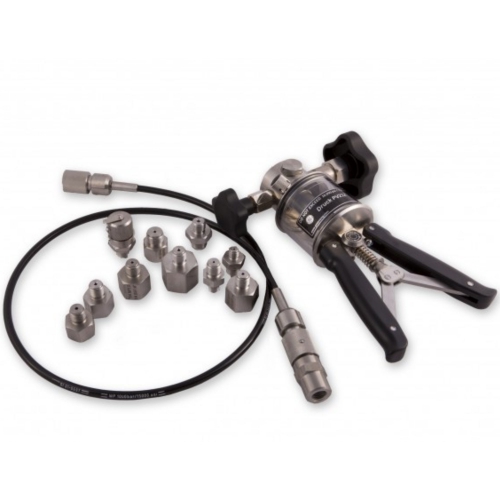

De Druck PV 212 hydraulische hand test pomp valt in de Essential range van kalibratie tools. De PV 212 Hydraulische hand test pomp is lichtgewicht, eenvoudig te gebruiken en genereert druk tot 1000 bar (15,000 psi). Het is een ideale tool voor het kalibreren van druk transmitters, druk transducers, druk schakelaars en manometers.
De PV 212 hydraulische hand test pomp kan worden gebruikt als draagbare vergelijkingspomp in combinatie met diverse druk referentie instrumenten zoals digitale manonometers, druk kalibratoren of analoge test manometers. De pomp beschikt over een instelbare overdruk beveiliging, fijnregeling en een unieke priming / hoge druk selectie schakelaar.De Essential Range
De PV 212 hydraulische handpomp, onderdeel van het Essential productassortiment, is een dagelijkse test- en kalibratietool waarop u kunt vertrouwen. Gebouwd dankzij de jarenlange kennis en knowhow Druck, is de Essential range van Druck sterk, betrouwbaar, nauwkeurig en gemakkelijk te gebruiken. U kunt dus doorgaan met uw werk en erop vertrouwen dat het Essential-assortiment zijn werk goed uitvoert. En als u een hogere nauwkeurigheid of meer functionaliteit nodig hebt, kunt u bij ons Expert- en Elite-assortiment terecht.
Belangrijkste kenmerken-
Hydraulische druk tot 1000 bar (15.000 psi)
-
Compatibel met veel verschillende vloeistoffen
-
Groot transparant reservoir van 100cc
-
Snelle priming en druk genereren met behulp van een knijp pomp
-
Gecontroleerde druk aflaat instelling
-
Hogedruk / priming-schakelaar
-
-
PV212 Specifications, General Pressure Ranges PV212-22: 0 to 700 bar (0 to 10,000 psi)
PV212-23: 0 to 1000 bar (0 to 15,000 psi)Materials Series 300 stainless steel, brass, nickel plated brass, Polyester, Nitrile, polyurethane and PTFE Fluid Media Mineral oil, distilled water Dimensions (L x W x D) 23 cm x 16 cm x 7 cm (9 in. x 6.25 in. x 2.75 in.) Weight Approximately 1.6 kg (3.5 lb) PV212 Accessories Specifications HK212 High Pressure Hose Kit Specifications
The HK212 are high quality pressure hose kits designed to operate with the PV212. The standard stainless steel/nylon construction is suitable for use with oil or water.
• Self-sealing fittings—finger tight connections
• Low volumetric expansion—negligible pressuredrop
• Heavy duty constructionWorking Pressure 1000 bar (15,000 psi) Minimum Burst Pressure 2500 bar (36,200 psi) Pressure Connections B : BSP
N : NPTMinimum Bend Radius 5.7 cm (2.25 in.) Working Temperature -30°C to 80°C (-22°F to 176°F) Construction Nylon, stainless steel, brass, PTFE, nitrile Outer Diameter 6.4 mm (0.25 in.) Bore 3.3 mm (0.13 in.) Fluid Media Mineral oil and distilled water
Ordering InformationUse this table to order “PV212-X”
PV212
PV212 Hydraulic Hand Pump -22
700 bar/10000 psi
-23
1000 bar/15000 psi
-P
Pump Only
(Pump supplied in cardboard box, with basic BSP and NPT adaptors)
-TK
Pump Test Kit
(Pump supplied in Transit case with relevant adaptor kit and hoses) -104
Pump Test Kit
(Pump supplied in Transit case with relevant adaptor kit, hoses, PRV, and DPI104) -104S
Pump Test Kit
(Pump supplied in Transit case with relevant adaptor kit, hoses, PRV, and DPI104S) -B
BSP
(Only mandatory to select one if “ TK, 104 or 104S” is selected) -N
NPT
(Only mandatory to select one if “ TK, 104 or 104S” is selected) -16A
(See tables below if “104 or 104S” is selected)
-16G
(See tables below if “104 or 104S” is selected)
-18S
(See tables below if “104 or 104S” is selected)
-20S
(See tables below if “104 or 104S” is selected)
-22S
(See tables below if “104 or 104S” is selected)
-23S
(See tables below if “104 or 104S” is selected)
PV212
-22
-104S
-B
-16A
(Typical Model Number)
Other examples may be:
PV212-22-P (Pump Only)
PV212-22-TK-B (Pump Kit with BSP Fittings)
PV212-23-104S-B-16A (Pump Kit with BSP Fittings & DPI104-IS)DPI104/DPI104S Pressure Ranges for Fitting B - BSP DPI104/DPI104S Pressure Ranges for Fitting N - NPT Code Description Code Description 16A 70 bar absolute 16A 70 bar absolute 16G 70 bar gauge 16G 70 bar gauge 18S 200 bar sealed gauge 18S 200 bar sealed gauge 20S 350 bar sealed gauge 20S 350 bar sealed gauge 22S 700 bar sealed gauge 22S 700 bar sealed gauge 23S 1000 bar sealed gauge 23S 1000 bar sealed gauge Accessories(Order all items separately using the below Part Numbers)Spares(Order all items separately using the below Part Numbers)Part Number Description Part Number Description PV212-Adaptors1 PV212 Set of BSP to BSP Adaptors PV212A121M2038-1 PV212-22 Fine Control Assembly 700 bar PV212-Adaptors2 PV212 Set of BSP to NPT Adaptors PV212A121M2038-2 PV212-23 Fine Control Assembly 1000 bar PV212-Adaptors3 PV212 set of NPT to NPT Adaptors PV212A121M2038-3 PV212-22 Handle/Piston Assembly 700 bar PV212-TC PV212 Transit Case PV212A121M2038-4 PV212-23 Handle/Piston Assembly 1000 bar PV212-SK PV212 Common Service Kit PV212A121M2038-5 PV212 Common Release Valve Assembly HK212-B-1 High Pressure Hose Kit (1m BSP) PV212A121M2038-6 PV212 Pump Labels HK212-B-2 High Pressure Hose Kit (2m BSP) PV212A121M2038-7 PV212 Blanking Plug Kit HK212-N-1 High Pressure Hose Kit (1m NPT) PV212-SK-FULL PV212 Common Seal Kit HK212-N-2 High Pressure Hose Kit (2m NPT) PRV212-1 Pressure Relief Valve 50 bar PRV212-2 Pressure Relief Valve 200 bar PRV212-3 Pressure Relief Valve 400 bar PRV212-4 Pressure Relief Valve 700 bar PRV212-5 Pressure Relief Valve 1000 bar 1S-PRVSK1 PRV212 Relief Valve Common Seal Kit -
