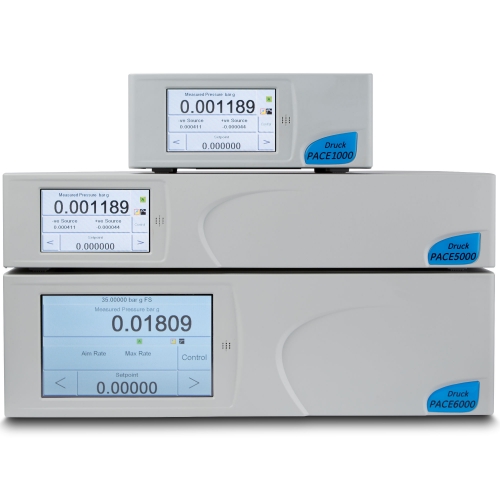

PACE 5000

Pressure Measurement

CM0/CM1/CM2 Pressure Ranges:

25, 70, 200, 350 and 700 mbar gauge, 1, 2, 3.5, 7, 10, 20, 35, 70, 100, 135, 172, 210 bar gauge
0.35, 1, 3, 5, 10, 15, 30, 50, 100, 150, 300, 500, 1000, 1500, 2000, 2500, 3000 psi gauge
2.5, 7, 20, 35, 70, 100, 200, 350, 700 kPa gauge, 1, 2, 3.5, 7, 10, 13.5, 17.2, 21 MPa gauge
All gauge versions available with negative calibration as standard. For absolute pressure ranges select any range of 1 bar and above and add barometric option

Over Range Indication:

10% above mbar/bar full scale pressure range

Pressure Media:

Dry, oil free, non-corrosive gas maintained at a value of 10% above the maximum required outlet pressure, Dry air or Nitrogen recommended.

Display

PACE5000

4.3” TFT colour VGA resolution wide format display with integral touchscreen

PACE6000

7” TFT colour VGA resolution wide format display with integral touchscreen

Comms Update Rate

8 times per second

Display Update Rate

2 times per second

Readout

±9999999

Pressure Units

mbar, bar, Pa(N/m2), hPa, kPa, MPa, mmHg @ 0°C, cmHg @ 0°C, mHg @ 0°C,, inHg @ 0°C, mmH2O @ 4°C, cmH2O @ 4°C, mH2O @ 4°C, mmH2O @ 20°C, cmH2O @20 °C, mH2O @ 20 °C, kg/m2, kg/cm2, torr, atm, psi, lb/ft2, inH2O @ 4°C, inH2O @ 20°C, inH2O @ 60°F, ftH2O @ 4°C, ftH2O @ 20°C, ftH2O @ 60°F, User Defined 1, User Defined 2, User Defined 3, User Defined 4

Performance

PACE CM0 Standard Precision

0.02% Rdg + 0.02% FS (25 mbar: 0.20% rdg + 0.20% FS, 70 mbar: 0.10% rdg + 0.10% FS, 200 mbar: 0.04% rdg + 0.04% FS) includes linearity, hysteresis, repeatability and temperature effects over calibrated temperature range, for gauge pressures and assumes steady state temperature and regular zeroing.

PACE CM0 Controller Stability

0.005% FS

PACE CM1 High Precision

0.01% Rdg + 0.01% FS (25 mbar: 0.10% rdg + 0.10% FS, 70 mbar: 0.05% rdg + 0.05% FS, 200 mbar: 0.02% rdg + 0.02% FS) includes linearity, hysteresis, repeatability and temperature effects over calibrated temperature range, for gauge pressures and assumes steady state temperature and regular zeroing.

PACE CM1 Controller Stability

0.003% FS (25mbar range = 0.005% FS)

PACE CM2 Premium Precision

0.005% Rdg + 0.005% FS (25 mbar: 0.05% rdg + 0.05% FS, 70 mbar: 0.025% rdg + 0.025% FS, 200 mbar: 0.01% rdg + 0.01% FS) includes linearity, hysteresis, repeatability and temperature effects over calibrated temperature range, for gauge pressures and assumes steady state temperature and regular zeroing.

PACE CM2 – Controller Stability

0.001% FS (25mbar = 0.004% FS. 70 mbar = 0.003% FS)

PACE CM2-A Aeronautical

Altitude range: -3000 to +55,000 ft
Altitude precision: @ Sea level ±2 ft, @ 8500 ft ±3 ft, @ 35,000 ft ±9 ft
Altitude RVSM accuracy: @ Sea level ±5 ft, @ 29,000 ft ±25 ft, @ 41,000 ft ±46 ft, @ 35,000 ft ±33 ft
Airspeed range: to 650 knots
Airspeed precision: @ 50 knots ±1.00 kts, @ 250 knots ±0.21 kts, @500 knots ±0.11 kts
Pressure Range –1 to +1bar g, pressure precision 0.005% Rdg + 0.005% FS includes linearity, hysteresis, repeatability and temperature effects for gauge pressures and assumes steady state temperature and regular zeroing.
1300 mbar reference precision 0.005% FS, Includes non-linearity, hysteresis, repeatability and temperature effects over calibrated temperature range.

PACE CM3 Reference Precision

0.001% FS, includes non-linearity, hysteresis, repeatabilty and temperature effects over calibrated temperature range.

PACE CM3 Controller Stability

0.001% of absolute range FS

PACE CM3 Accuracy

Absolute ranges 2, 3.5 bar accuracy (2 Sigma) over calibrated temperature range =
0.0016%Rdg + 0.0033% FS. Includes measurement precision, measurement long term stability per annum and calibration equipment expanded uncertainty ≤ (0.0032% Rdg + 0.7 Pa).

PACE CM Measurement Long Term Stability

CM0, CM1 and CM2 Ranges: 2 bar g to 210 bar g (30 psi g to 3000 psi g) 0.01% of reading per annum, 1 bar g 0.02% of reading per annum and 25 mbar g to 700 mbar g 0.03% of reading per annum, assumes regular Zeroing.
CM3 Ranges: 0.0025% FS per annum absolute ranges.
CM0-B, CM1-B, CM2-B, CM3-B and CM2-A: Barometric reference sensor 0.05 mbar a or 0.00072515 psi a per annum.
CM3-B Pseudo Gauge Ranges: Absolute sensor plus barometric sensor.
