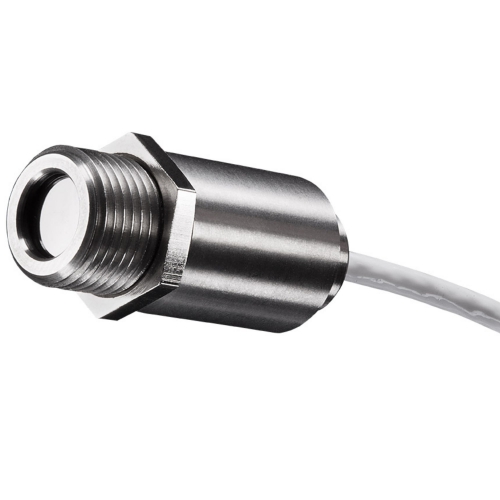

De pyrometer Optris CT LT is uitgerust met een van 's werelds kleinste infrarood sensoren. De sensor heeft een hoge optische resolutie van 22:1. Daarnaast biedt het instrument een grote variabiliteit vanwege selecteerbare analoge uitgangen en meerdere digitale interfaces in de elektronica box.

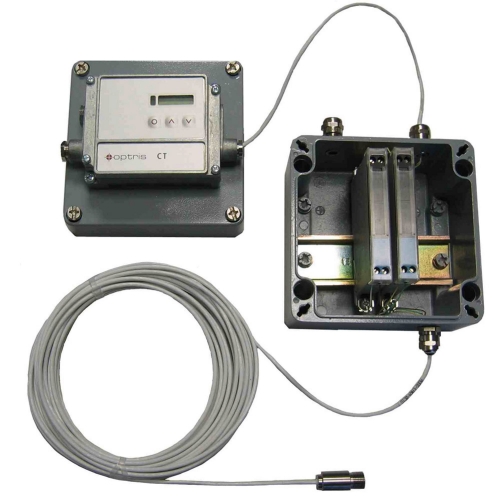

De uitgebreide versie, de pyrometer Ctex LT, is bovendien uitgerust met een dubbele Zener barrière (voor gebruik in een explosiegevaarlijke omgeving).
Belangrijke specificaties
- Temperatuurbereik: -50 ° C tot 975 ° C
- Spectrale bereik: 8 tot 14 micrometer
- Reactietijd: 150 ms
-
General Specifications
Environmental rating
IP 65 (NEMA-4)
Ambient temperature1)
–20 °C ... 180 °C (130°C to LT02) (sensing head)
–20 °C ... 85 °C (electronics)Storage temperature
–40 °C ... 130 °C (sensing head)
–40 °C ... 85 °C (electronics)Relative humidity
10 – 95 %, non condensing
Vibration (sensor)
IEC 68-2-6: 3 G, 11 – 200 Hz, any axis
Shock (sensor)
IEC 68-2-27: 50 G, 11 ms, any axis
Weight
40 g (sensing head) / 420 g (electronics)
Electrical Specifications
Outputs / analog
Channel 1:0/4 – 20 mA, 0 – 5/ 10 V, thermocouple J, K Channel 2: sensind head temperature (–20 °C ... 180 °C as 0 – 5 V or 0 – 10 V), alarm output
Output / alarm
24 V / 50 mA (open collector)
Optional
Relay: 2 x 60 V DC/ 42 V ACeff; 0.4 A; optically isolated
Outputs / digital
USB, RS232, RS485, CAN, Profibus DP, Ethernet (optional)
Output impedances
mA max. 500 Ω (with 8 – 36 V DC) mV min. 100 kΩ load impedance thermocouple 20 Ω
Inputs
Programmable functional inputs for external emissivity adjustment, ambient temperature compensation, trigger (reset of hold functions)
Cable length
1 m (standard), 3 m, 8 m, 15 m
Power Supply
8 – 36 V DC
Current draw
Max. 100 mA
Measurement specifications
Temperature range (scalable via programming keys or software)
–50 °C ... 975 °C (LT22)
–50 °C ... 600 °C (LT15)
–50 °C ... 600 °C (LT02)
–50 °C ... 600 °C (LT02)Spectral range
8 – 14 μm
Optical resolution (90 % energy)
22:1 (precision glass optics)
15:1 (precision glass optics)
2:1 (with flat front window)CF-lens (optional)
0.6 mm @ 10 mm (with LT22)
0.8 mm @ 10 mm (with LT15)
2.5 mm @ 23 mm (with LT02)System accuracy 2),3)
(at ambient temp. 23 ±5 °C)±1 % or ±1 °C
Repeatability2),3)
(at ambient temp. 23 ±5 °C)±0.5 % or ±0.5 °C
Temperature resolution (display)
0.1 K
NETD3), 4)
0.05 K (LT22 / LT15)
0.1 K (LT02)Response time
150 ms (95 %)
Emissivity/ Gain
(adjustable via programming keys or software)0.100 – 1.100
Transmissivity/ Gain (adjustable via programming keys or software)0.100 – 1.100 Signal processing (parameter adjustable via programming keys or software, respectively)
Peak hold, valley hold, average; extended hold function with threshold and hysteresis
Software
optris® Compact Connect
1) The LCD displays capacity may be limited at ambient temperatures below 0 °C.
2) Whichever is greater
3) At object temperatures >0 °C, ε = 1
4) At time constant 200 ms and TObj 25 °C -
