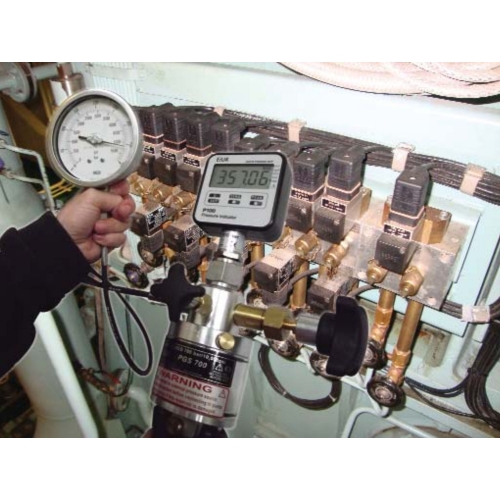

"All in one" oplossing voor het kalibreren aan boord van manometers, transmitters en druk- en temperatuur schakelaars. De MCK Marine Calibration Kit wordt geleverd in een robuuste en opvallende transportkoffer met wielen. De koffer is IP67 waterdicht. Alle meetapparatuur wordt geleverd met een kalibratie certificaat waarmee wordt voldaan aan internationale regelgeving. De koffer voldoet aan SOLAS IX. De koffer kan naar behoefte van verschillende type schepen worden ingedeeld:
- Temperatuur kalibrator van 15 tot 650 Deg C
- Digitale Druk Kalibrator van -1 tot 60 bar (Pneumatisch)
- Digitale Druk Kalibrator van 0 tot 1000 bar (Hydraulisch)
- Multifunctionele Kalibrator voor het meten en simuleren van Pt100, Thermokoppels, mA, Volt enz.
- BSP, NPT en Metrische adapter set
- Infrarood Thermometer van -50 tot 850 Deg C
-
Build up your Marine Calibration Kit Model
Description
MCK-L
Robust Marine Transit case, IP 65, water proof, with customised closed cell foam, documents lid, wheels and telescopic handle for easy transport
Temperature Calibrator and Inserts

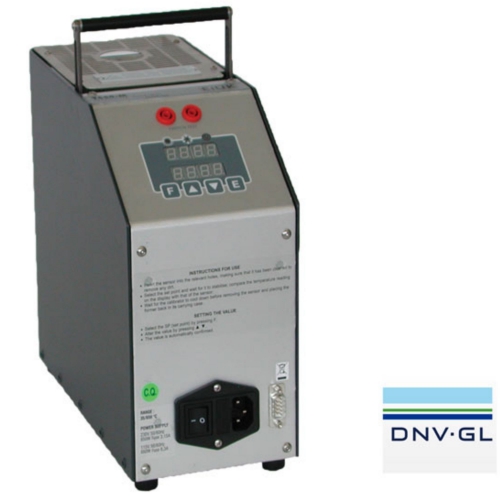

T650M-MK2
Dry-Block Temperature calibrator, DNV approved, 35 to 650C, 0.5 C accuracy, 110-220V automatic switching with automatic temperature switch function- Block 26x150 mm, supplied with insert INS-A (4.8mm, 2x 6.4mm, 1x3.3 mm holes) with certificate
T650M-INS-S1
T650M insert with 1 hole 13,5 mm (for sika/Danfoss engines thermostat)
T650M-INS-C
T650M Blank Insert
Pneumatic Calibration Test pumps and digital indicators or analogue test gauge
PGS40
Pneumatic Hand Pump, -1 to 40 bar, with test hose ( G14F)
PGS60
Pneumatic Hand Pump, -1 to 60 bar, with test hose ( G14F)
P100M-40
Digital Manometer, -1 to 40 bar, 0,1 % Accuracy, with certificate
P100M-60
Digital Manometer, -1 to 60 bar, 0,1 % Accuracy, with certificate
G11-0000
Dial gauge, 100 mm, 0.6 % FS, range -1 to 0 bar, with certificate
G11-0040
Dial gauge, 100 mm, 0.6 % FS, range 0 to 40 bar, with certificate
G11-0060
Dial gauge, 100 mm, 0.6 % FS, range 0 to 60 bar, with certificate
High Pressure Calibration Hand pump and digital indicators
PGS1000
Hydraulic Hand Pump, 0/1000 bar, OIL/WATER, with test hose
P100M-350
Digital Manometer, 0 to 350 bar, 0.1 % Accuracy
P100M-700
Digital Manometer, 0 to 700 bar, 0.1 % Accuracy
P100M-1K
Digital Manometer, 0 to 1000 bar, 0.1 % Accuracy
Pressure Calibrator Test point adapters
PGS-A-BSP
BSP test point adapter SET: 1/4, 1/8, 3/8, 1/2 inch BSP Female
PGS-A-NPT
NPT test point adapter SET: 1/4, 1/8, 3/8, 1/2 inch NPT Female
PGS-A-M
Metric Test point adapter SET: M20X1.5. M12X1.5
PGS-A-MM-1215F
Minimess Test Point adapter 1215F
PGS-A-MM-1620F
Minimess Test Point adapter 1620F
PGS-A-TF
Connector for test flange Ø 40mm, milling slot 26 mm
Electrical
MPM-25
Combined Multifunction Process Calibrator/Simulator& Multimeter. read/source mA, V, RTD, TC, Frequency and Full DMM function
DT8863
Infrared Thermometer, Range -50 to 850C, dual beam laser
DT3345
AC Clamp meter, 1000 A True RMS
DT9917
Digital Multi-meter 1000 A DC/AC
SU130
Professional Sound Level Meter, Class II
DT2236B
Speed Meter, contact/non contact
Digital Reference Thermometers
EasyTemp Multi
Dual Channel RTD/TC reference thermometer ( without probes)
Easy Temp RTD
Single Channel RTD reference thermometer ( without probe)
SRS-SPRT-45-360
Semi standard PRT, range -80 to 650C, length 360 mm ( fit in case)
SRS-TC-45-300
Semi standard TC type N, Range 0 to 1200 C, length 300 mm (fit in case)
UTI thermometer Calibration ( not packed with the marine case)
PLB150-TS-230V
Portable Liquid bath,-35 to 140C
PLB150-TC-230V
Portable liquid bath, -35 to 140 C TC version ( with input for RTD/TC)
PLB250-TS-230V
Portable Liquid bath, T amb to 250C
PLB250-TC-230V
Portable liquid bath, Tamb to 250 C TC version ( with input for RTD/TC)
SRS-SPRT-45-360
Semi standard PRT, range -80 to 650C, length 360 mm ( fit in case)
-
Documents:
Filename Upload date Size Marine Calibration Kit Datasheet 2019.8.20 1.8 MB
