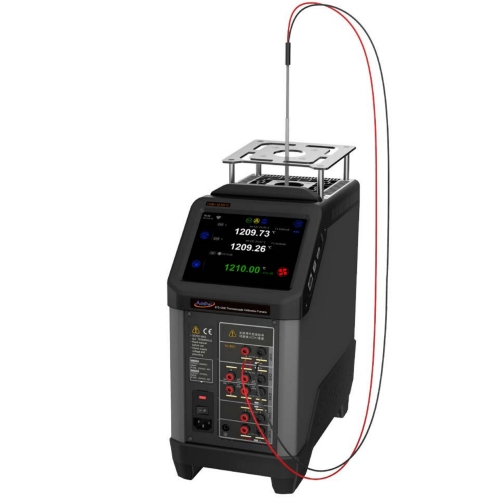

Additel 878-1210 Thermokoppel Kalibratie Oven

Specification

875-1210

878-1210

Temperature Range

100°C to 1210°C

Display Accuracy

±1.2°C @ 100°C

±1.2°C @ 300°C

±1.2°C @ 600°C

±1.6°C @ 900°C

±2.0°C @ 1210°C

±1.0°C @ 100°C

±1.0°C @ 300°C

±1.0°C @ 600°C

±1.2°C @ 900°C

±1.5°C @ 1210°C

Stability

±0.1°C

Axial Uniformity (20mm zone)

±0.6°C @ 100°C

±0.9°C @ 300°C

±1.2°C @ 600°C

±1.5°C @ 900°C

±1.5°C @ 1210°C

±0.4°C @ 100°C

±0.6°C @ 300°C

±0.8°C @ 600°C

±1°C @ 900°C

±1°C @ 1210°C

Radial Uniformity

±0.2°C @ 100°C

±0.3°C @ 300°C

±0.4°C @ 600°C

±0.8°C @ 900°C

±1°C @ 1210°C

±0.2°C @ 100°C

±0.3°C @ 300°C

±0.4°C @ 600°C

±0.6C @ 900°C

±0.8°C @ 1210°C

Loading Effect

±0.5°C

Environmental Conditions

8°C to 38°C guaranteed accuracy

0°C to 50°C, 0% to 90% RH non-condensing, 3000 M altitude for normal operation

Storage Conditions

-20°C to 60°C

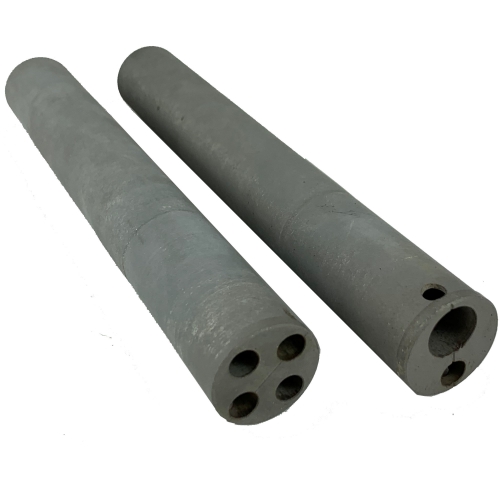

Immersion Depth

XR style inserts = 138 mm (5.43") XS style inserts = 116 mm (4.57")

(see insert ordering info for more details)

Insert Size - OD

24.8 mm (0.98 inches)

Heating Time

50 min: 23°C to 1210°C

Cooling Time

50 mins:1210°C to 300°C 50 mins: 300°C to 50°C

55 mins:1210°C to 300°C 55 mins: 300°C to 50°C

Typical Time to Stability

15 min

Resolution

0.01°C

Units

°C, °F, and K

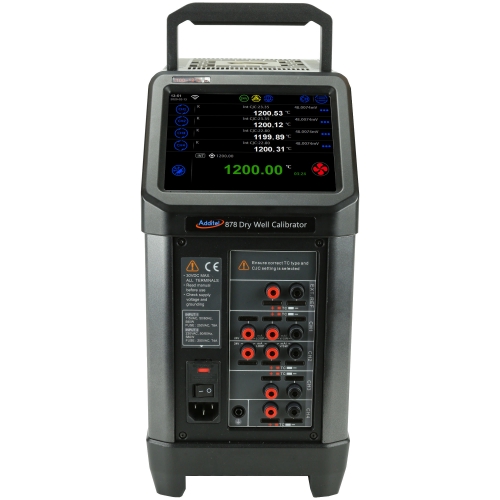

Display

6.5 in (165 mm) color touch screen

Size (H x W x D)

Weight

10.6 kg (23.4 lbs)

Specification

875-1210

878-1210

Power Requirements

115 V AC (±10%) or 230 V AC (±10%),

switchable, 45-65 Hz, 580 W

Mechanical Testing

Vibration: 2 g (10-500 Hz), 30 min for 2 sides Impact: 4 g three times

Drop test: 500 mm (19.6 in)

Communication

USB A, USB B, RJ45, WiFi, Bluetooth

Localization

English, Chinese, Japanese, Russian, German

Warranty

1 year

Specification

875-1210

878-1210

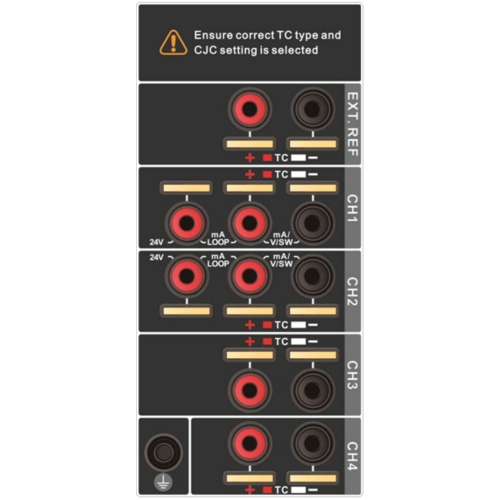

TC Measurement Channels

Patented TC terminals: Accepting S, R, K, B, N, E, J, T, L, and U

TC Measurement Accuracy Type K

Ch. 1-4 (excluding sensor)

±0.182°C @ 100°C

±0.266°C @ 300°C

±0.310°C @ 600°C

±0.397°C @ 900°C

±0.517°C @1210°C

±0.172°C @ 100°C

±0.236°C @ 300°C

±0.251°C @ 600°C

±0.304°C @ 900°C

±0.382°C @ 1210°C

TC Range

–75 mV to 75 mV (UUT Channels 1-4)

–18 mV to 18 mV (Reference Channel)

TC Resolution

0.0001 mV, Input Impedance < 10Ω

TC Voltage Accuracy

0.02% RD + 8μV (ch. 1-4)

0.01% RD + 2μV (ref ch.)

0.01% RD + 8μV (ch. 1-4)

0.005% RD + 2μV (Ref ch.)

Internal CJC Accuracy

±0.35°C (ch. 1-4)

±0.25°C (ref ch.)

±0.30°C (ch. 1-4)

±0.20°C (ref ch.)

Current Range

–30 mA to 30 mA

Current Accuracy

±(0.02% of rdg+ 2μA)

±(0.01% of rdg + 0.6mV)

0.001 V; Input impedance:>

1M

0.0001V

0.0001V

DC 24V Output

24 V ± 10%, MAX 60 mA

Hart Communication

Optional (ADT875PC and ADT878PC Models)

"Temperature Coefficient 0°C to 8°C and 38°C to 50°C

TC Readouts: ±5 ppm FS/°C Current: ±5 ppm FS/°C Voltage: ±5 ppm FS/°C

Switch Test

Mechanical or Electrical - Channels 1 & 2 only

Documentation

Up to 1,000 tasks which store up to 10 results each containing as found and as left data. Snap shot feature allows for screen captures. Records auto step and ramp functions
