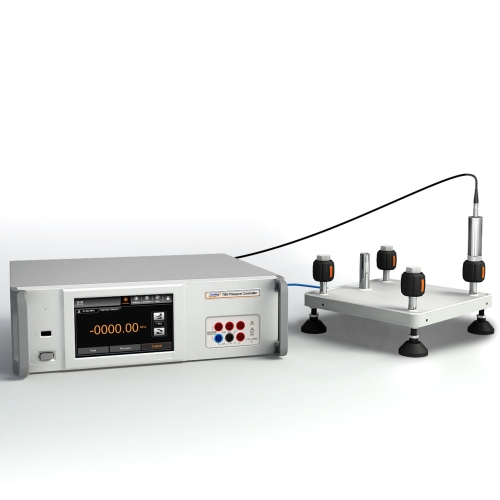

Additel 780 Pressure Controller

Prijs op aanvraag

Al jaren leveren we de meest duurzame, nauwkeurige en kwalitatief hoogwaardige draagbare drukkalibratoren.

Offerte

Productbeschrijving
Extra informatie
Downloads

Al jaren leveren we de meest duurzame, nauwkeurige en kwalitatief hoogwaardige draagbare drukkalibratoren.

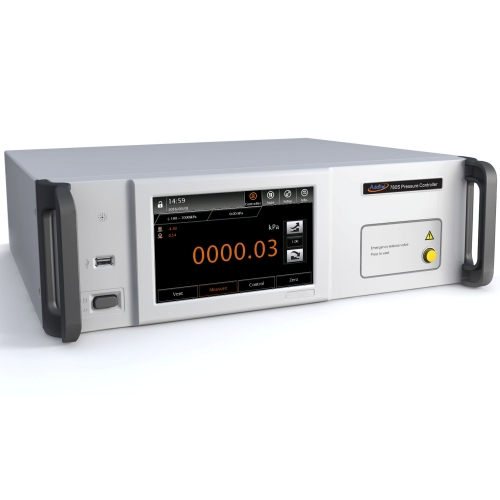

De Additel 780 serie drukregelaars beschikt ook over deze kenmerken in een nieuwe controller uitvoering. De 780 serie zit vol met functies en functionaliteit en is bijzonder eenvoudig te bedienen. De Additel 780-serie biedt twee basis uitvoeringen met een meetberei tot 70 bar (1.000 psi) en 200 bar (3.000 ps). Het bereik van de basis uitvoering staat voor het maximum regelbereik van de controller. Elke configuratie is voorzien van een druksensor waarvan u het bereik zelf kunt selecteren, het bereik dat het meest geschikt is voor uw toepassing.

Er kunnen zowel interne als externe druk sensoren worden toegepast. Hiermee heeft u nu en in de toekomst de mogelijkheid om eenvoudig het drukbereik te wijzigen of aan te vullen.

Stand alone oplossing:
Reguliere druk regelaars hebben altijd een stikstoffles of gasfles nodig om het instrument van de nodige voedingsdruk te voorzien. De Additel 780 series is uniek. Dankzij de optionele elektrische pomp kunt u druk genereren tot 70 bar zonder gebruik te maken van een gasfles.

Kenkmerken:
• Druk bereiken van vacuüm tot 200 bar
• Eenvoudig verwisselbare intelligente druksensoren
• Standaard model nauwkeurigheid 0.02% full scale (van ±0.7 bar tot 700 bar gauge)
• Verhoogde nauwkeurigheid tot 0.01% van reading of 0,003% van full scale, welke het grootst is (van 2 tot 70 bar absoluut)
• Maximale nauwkeurigheid 0.005% van reading plus 0.005% van full scale (van 140 tot 200 bar gauge)
• Ingebouwde barometer (standaard nauwkeurigheid 40 Pa absoluut, maximaal 3 Pa gauge)
• Standalone oplossing tot 70 bar, geen gasfles nodig wanneer dit gebruikt wordt in combinatie met de electrische pomp
• Externe drukmodules tot 200 bar
• WiFi communicatie
• Volledig temperatuur gecompenseerd van 0°C to 50°C
• HART Communicatie en Profibus PA
• Groot 7” color touch screen display
• Controle stabiliteit van 0.003%FS
• Eenvoudig te gebruiken user interface

Specification	ADT780-1K	ADT780-3K
Pressure range	-14.5 to 1,000 psi (-0.95 to 70 bar)	-14.5 to 3,000 psi (-0.95 to 200 bar)[1]
Control stability	0.003% FS (stability based on % FS of control sensor range)
Precision (includes 1 year stability)	See pressure range table
Media	Clean gas
Over-range indication	103% to 120% (based on sensor)
Resolution	4, 5, 6, or 7 digits (user selectable)[2]
Pressure type	Gauge, Absolute
Warm up time	15 minutes
Measurement units	Pa, hPa, kPa, MPa, bar, mbar, psi, mmHg@0°C,cmHg@0°C, mHg@0°C, inHg@0°C, inH2O@4°C, mmH2O@4°C, cmH2O@4°C, mH2O@4°C, mmH2O@20°C, cmH2O@20°C, mH2O@20°C, kg/m2, kg/cm2, mtorr, torr, atm, lb/ft2, tsi, user selectable
Minimum control pressure[3]	0.0001 psi	0.001 psi

BAROMETRIC MEASUREMENT SPECIFICATION
Sensor/Mode	Gauge	Absolute
ADT160-02-CPXX	N/A	40 Pa[1]
ADT160-01-APXXQ	3 Pa[2]	N/A
Barometer range (60~110)kPa, the accuracy is 40 Pa (11 Pa is optional) [1] 40 Pa uncertainty (k=2) includes calibration uncertainty, linearity, and long term stability (<30 Pa per year). Barometer range of 60 to 120 kPa. [2] Combined linearity, hysteresis, and repeatability. Add 3 Pa when used in gauge mode. When using the ADT160-01-APXXQ sensors with the ADT780 controller in gauge mode, regular zeroing will realign the barometric reading to provide the most accurate result

ELECTRICAL MEASURE SPECIFICATIONS
Specification	Range	Resolution	Accuracy
Volts DC	-30 to 30 V	0.1 mV	±0.01% rdg + 1.5 mV
Volts DC	-300 to 300 mV	1 μV	±0.01% rdg + 15 μV
Current DC	-30 to 30 mA	0.1 μA	±0.01% rdg + 1.5 μA
Switch test	If the switch has detected voltage, the range is from 3 – 24 V
DC 24V output	24V ± 0.24V, max 30 mA

PHYSICAL SPECIFICATIONS
Specification	ADT780-1K & ADT780-3K
Power	100 to 240V, 50/60 Hz
Pressure ports	G1/8 F
Storage temperature	-20°C to 70°C
Operating environment	0-90% RH non-condensing
Display	7 inch (17.8 cm) color, touch screen display
Weight	33 lbs (15 kg)
Dimensions (DWH)	16.5 x 17.3 x 5.2 inch (419 x 440 x 132 mm)
Mounting	Standard desktop, optional rack mount kit
Shock	4G
Vibration	1G 10Hz~500Hz

OTHER SPECIFICATIONS
WiFi specifications	802.11 b, g, and n
Vent	Front panel vent and safety release button (only for 780S)
Communications	RS232,USB,LAN,WIFI
Stability indicator	User selectable
Operating modes	Control, measure, and vent
Display modes	Controller – show pressure indication and control
Localization	English, Chinese (simplified), German, Spanish, French, Italian, Portuguese, Russian, Japanese
Conformity	CE
Calibration certification	Accredited certificate of calibration with data included
Warranty	1 year

160A for 780 & 780S
P/N	Pressure Range		Media	Accuracy[2]	Pressure Rating		Suggested Controller Compatibility	Internal/ External Use
P/N	psia	bar.a	Media	Accuracy[2]	Burst	Over Pressure	Suggested Controller Compatibility	Internal/ External Use
Precision Sensors[1]
AP15R	0 to 15	0 to 1	G	0.01% FS	2x	1.2x	ADT780-1K only	Both
AP30R	0 to 30	0 to 2	G	0.01% rdg or 0.003% FS whichever is greater	2x	1.2x	ADT780-1K only	Both
AP50R	0 to 50	0 to 3.5	G	0.01% rdg or 0.003% FS whichever is greater	2x	1.2x	ADT780-1K only	Both
AP100R	0 to 115	0 to 8	G,L	0.01% rdg or 0.003% FS whichever is greater	2x	1.2x	ADT780-1K only	Both
AP300R	0 to 315	0 to 21	G,L	0.01% rdg or 0.003% FS whichever is greater	2x	1.2x	Both	Both
AP500R	0 to 515	0 to 36	G,L	0.01% rdg or 0.003% FS whichever is greater	2x	1.2x	Both	Both
AP1KR	0 to 1,015	0 to 71	G,L	0.01% rdg or 0.003% FS whichever is greater	2x	1.2x	Both	Both
AP2KQ	0 to 2,015	0 to 141	G	0.005% rdg + 0.005% FS	3x	1.1x	ADT780-3K only	Both
AP3KQ	0 to 3,015	0 to 201	G	0.005% rdg + 0.005% FS	3x	1.1x	ADT780-3K only	Both
[1] Contact Eurotron for other range options. [2] Accuracy includes calibration uncertainty, linearity and long-term stability. **Low pressure sensors (ADT160A-XX-DPX) available for low pressure and differential pressure measurement. Also available for low pressure control (gauge mode only). Ranges from ±1 inH20 (2.5 mbar) to 300 inH2O (700 mbar).

160A for 780 & 780S
P/N	Pressure Range		Media	Accuracy	Pressure Rating		Suggested Controller Compatibility	Internal/ External Use
P/N	psig	bar.g	Media	Accuracy	Burst	Over Pressure	Suggested Controller Compatibility	Internal/ External Use
Standard Pressure Sensors
CP10	±10	±0.7	G	0.02% FS	3x	1.2x	ADT780-1K only	Both
CP15	±15	±1.0	G	0.02% FS	3x	1.2x	ADT780-1K only	Both
CP30	-15 to 30	-1 to 2.0	G	0.02% FS	3x	1.2x	ADT780-1K only	Both
CP50	-15 to 50	-1 to 3.5	G	0.02% FS	3x	1.2x	ADT780-1K only	Both
CP100	-15 to 100	-1 to 7.0	G,L	0.02% FS	3x	1.2x	ADT780-1K only	Both
CP300	-15 to 300	-1 to 20	G,L	0.02% FS	3x	1.2x	Both	Both
CP500	-15 to 500	-1 to 35	G,L	0.02% FS	3x	1.2x	Both	Both
CP600	-15 to 600	-1 to 40	G,L	0.02% FS	3x	1.2x	Both	Both
CP1K	-15 to 1,000	-1 to 70	G,L	0.02% FS	3x	1.2x	Both	Both
CP2K	-15 to 2,000	-1 to 140	G,L	0.02% FS	3x	1.2x	ADT780-3K only	Both
CP3K	-15 to 3,000	-1 to 200	G,L	0.02% FS	3x	1.2x	ADT780-3K only	Both
CP5K	-15 to 5,000	-1 to 350	G,L	0.02% FS	3x	1.2x	N/A	External
CP10K	-15 to 10,000	-1 to 700	G,L	0.02% FS	2x	1.2x	N/A	External

160A GENERAL SPECIFICATIONS
	Standard Accuracy	Precision Accuracy
	CPXXX	APXXQ	APXXXR
Operating temperature	-10°C to 50°C (14°F to 122°F)	15°C to 25°C (59°F to 77°F)	10°C to 30°C (50°F to 86°F)
Storage temperature	-20°C to 70°C (-4°F to 158°F)	-20°C to 70°C (-4°F to 158°F)
Relative humidity	95% RH	90% RH
Pressure connections (for external use only)	1/4NPT, 1/2NPT, 1/4BSP, 1/2BPS, M20x15
Enclosure (for external use only)	SS enclosure
Dimensions (Dia x H)	33 mm x 123 mm (1.3” x 4.84”)	44 mm x 220mm (1.7” x 8.7”)	44 mm x 195 mm (1.7” x7.7”)
Weight	0.4 kg (0.99 lb)	0.8 kg (1.8 lb)	0.7 kg (1.5 lb)

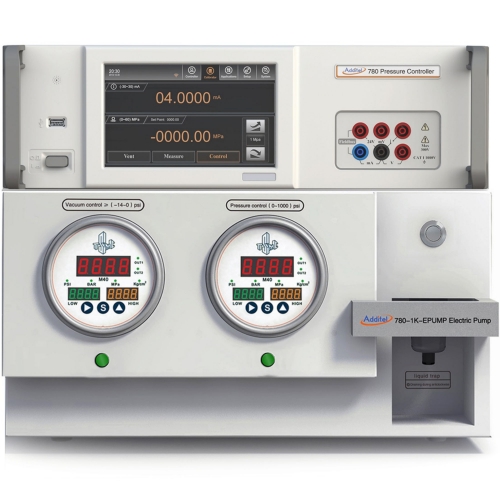

ADT780-1K-EPUMP
Pressure range	-13.5 to 1,080 psi (-0.95 to 75 bar)
Weight	69.6 lbs (31.6 kg)
Size(WHD)	17.3 X 9.3 X 21.7 inch (440 X 235X 550 mm)
Power	100 to 240V
Media	Air
Volume	150 mL
Outlet port	G1/8F
Storage temperature	-20°C to 70°C
Operating environment	0-90% RH non-condensing
Mounting	Standard desktop, optional rack mount
Control operation	2 LED displays with pressure limit settings
Typical max pressure time	Approx 2 min with ADT780 Controller

Documents:

File name	Upload Date	Size
Additel 780 series pressure controller data sheet	2018.11.13	0.3 MB
Additel 780 pressure controller User Manual	2018.3.27	6.6 MB
780-1K-EPUMP Electrical Pump User Manual	2018.3.27	1.3 MB

Update Packages:

File name	Upload Date	Size
Additel 780 Firmware Update Package v1.1.4.1	2019.10.30	4.4 MB
