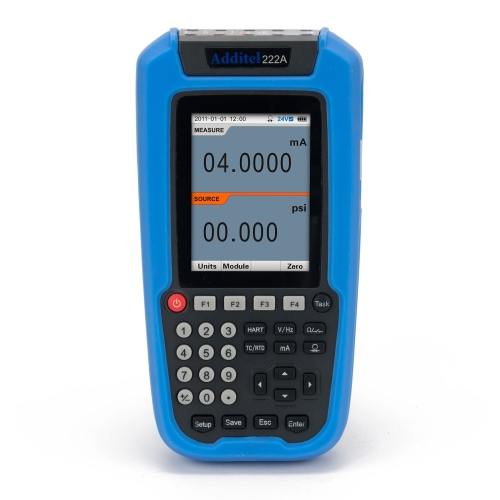

Additel 222A Multifunctionele Proces Calibrator
Prijs op aanvraag
Een multifunctionele kalibrator met verschillende gepatenteerde technologieën, de 222A is een ultracompact, robuust en gemakkelijk te gebruiken, in de hand te houden instrument voor het simuleren en meten van druk, temperatuur en elektrische signalen.
- Productbeschrijving
- Extra informatie
- Video
- Downloads
-
Een multifunctionele kalibrator met verschillende gepatenteerde technologieën, de 222A is een ultracompact, robuust en gemakkelijk te gebruiken, in de hand te houden instrument voor het simuleren en meten van druk, temperatuur en elektrische signalen. Het smartphone type menu en de interface maken de bediening eenvoudig en gemakkelijk. Automatisering en documentatiemogelijkheden maken van de 222A een perfecte oplossing voor uw proces kalibraties
De Additel 222A heeft de mogelijkheid om externe druk sensoren aan te sluiten zodat u ook drukkalibraties met dit instrument kunt uitvoeren. -
Measurement Accuracy
Range
Resolution
Accuracy
Voltage DC
±75.0000 mV
0.1μV
0.01%RD + 3.75 μV
±30.0000 V
0.1 mV
0.01%RD + 1.5 mV
Current DC
± 30.0000 mA
0.1μA
0.01%RD + 1.5 μA
Resistance
Two-wire 0 to 400.000 Ω
1mΩ
0.02%RD + 0.02 Ω
0 to 400.000 Ω
1mΩ
0.02%RD + 0.02 Ω
0.02%RD + 0.02 Ω
Four-wire 0 to 400.000 Ω
10mΩ
0.01%RD + 0.02 Ω
Two-wire 0 to 4000.00 Ω
10mΩ
0.02%RD + 0.2 Ω
Three-wire 0 to 4000.00 Ω
10mΩ
0.02%RD + 0.2 Ω
Four-wire 0 to 4000.00 Ω
10mΩ
0.01%RD + 0.2 Ω
Frequency
1 to 50000.0 Hz
0.1Hz
0.005%RD + 1 Hz
Pulse
0 to 999999
1
N/A
Limit Switch
For the contact with potential, the voltage within the range 3V to 24V.
Source Accuracy
Voltage DC
-10.000 to 75.000mV
1μV
0.02%RD + 4.25 μV
0 to 12.0000 V
0.1mV
0.02%RD + 0.6 mV
Current DC
0 to 22.000 mA
1μA
0.02%RD + 1.1 μA
Resistance
1 to 400.00 Ω
10mΩ
0.02%RD + 0.02 Ω
1 to 4000.0 Ω
100mΩ
0.03%RD + 0.4 Ω
Frequency
0 to 50000.0 Hz
0.1Hz
0.005%RD + 1 Hz
Pulse
0 to 999999
1
N/A
DC24V
N/A
N/A
0.5V
Thermocouple Measurement and Source Accuracy Measure and Simulate Standard Temperature Range (°C) Accuracy (°C) Measure Source S IEC 584 -50 to 1768 -50 to 400 1 1.1 400 to 1000 0.6 0.6 1000 to 1768 0.7 0.8 R IEC 584 -50 to 1768 -50 to 200 1.4 1.4 200 to 500 0.6 0.6 500 to 1768 0.6 0.7 B IEC 584 0 to 1820 50 to 450 3.8 3.8 450 to 800 0.9 0.9 800 to 1820 0.6 0.7 K IEC 584 -270 to 1372 -250 to -200 1 1.1 -200 to -100 0.4 0.5 -100 to 600 0.3 0.3 600 to 1372 0.4 0.5 N IEC 584 -270 to 1300 -250 to -200 1.5 1.6 -200 to -100 0.5 0.6 -100 to 1300 0.4 0.5 E IEC 584 -270 to 1000 -250 to -200 0.6 0.7 -200 to -100 0.3 0.3 -100 to 0 0.2 0.2 0 to 700 0.2 0.3 700 to 1000 0.2 0.4 J IEC 584 -270 to 1200 -210 to -100 0.3 0.3 -100 to 1200 0.3 0.4 T IEC 584 -270 to 400 -250 to -200 0.8 0.9 -200 to 0 0.4 0.4 0 to 400 0.2 0.2 C ASTM E988 0 to 2315 0 to 1000 0.5 0.5 1000 to 1800 0.7 0.9 1800 to 2315 1 1.4 D ASTM E988 0 to 2320 0 to 100 0.5 0.5 100 to 1100 0.4 0.5 1100 to 2000 0.6 0.9 2000 to 2320 0.9 1.3 G ASTM E1751 0 to 2315 0 to 200 2.4 2.4 200 to 400 0.5 0.5 400 to 1400 0.4 0.5 1400 to 2315 0.7 1 L DIN43710 -200 to 900 -200 to -100 0.2 0.3 -100 to 400 0.2 0.2 400 to 900 0.2 0.3 U DIN43710 -200 to 600 -200 to 0 0.4 0.4 0 to 600 0.2 0.3 *Accuracy with external cold junction; for internal cold junction add 0.1°C (k=2) Measurement Accuracy Measure and Simulate Standard Temperature Range (°C) Accuracy (°C) Measure (2W/3W) Measure (4W) Source Pt10(385) IEC 751 -200 to 850 -100 to 200 0.65 0.6 0.65 200 to 600 0.82 0.72 0.82 600 to 850 0.96 0.82 0.96 Pt100(385) IEC 751 -200 to 850 -100 to 200 0.15 0.1 0.15 200 to 600 0.26 0.16 0.26 600 to 850 0.34 0.2 0.34 Pt100(3916) JIS 1604 -200 to 850 -100 to 200 0.15 0.1 0.15 200 to 600 0.26 0.16 0.26 600 to 850 0.33 0.2 0.33 Pt100(3926) Minco Application Aid #18 -200 to 850 -100 to 200 0.15 0.1 0.15 200 to 600 0.26 0.16 0.26 600 to 850 0.33 0.2 0.33 Pt500(385) IEC 751 -200 to 850 -100 to 200 0.2 0.16 0.36 200 to 600 0.32 0.22 0.54 600 to 850 0.4 0.27 0.67 Pt1000(385) IEC 751 -200 to 850 -100 to 200 0.1 0.05 0.25 200 to 600 0.2 0.1 0.42 600 to 850 0.27 0.14 0.54 Cu10(427) Minco Application Aid #18 -100 to 260 -100 to 260 0.61 0.56 0.61 Cu50(428) GOST 6651-94 -50 to 150 -50 to 150 0.17 0.13 0.17 Cu100(428) GOST 6651-94 -50 to 150 -50 to 150 0.12 0.09 0.12 Ni120(672) Edison curve #7 -100 to 260 -100 to 260 0.07 0.05 0.07 Ni100(618) DIN 43760 -100 to 260 -100 to 260 0.08 0.06 0.08 General Specifications
Operating Temperature
-10°C to 50°C
Storage Temperature
-20°C to 60°C
Humidity
<90%, non-condensing
European Compliance
CE Mark
Display
3.5 inch TFT color screen
Electrical Connection
Ø4mm sockets and flat mini-jack thermocouple socket
RS232 Interface
Standard RS232-DB9 socket
Size
3.9" x 7.6" x 2.0" (100mm x 192mm x 52mm)
Weight
1.6 lb (0.7 kg)
Power Supply
Polymer Li-ion rechargeable battery,or 10V DC adaptor
Battery
Rechargeable Li-ion battery (included)
Battery Life
15 hours uninterrupted use
Battery life will be reduced when 24V is applied
Battery Charge
110V/220V external power adapter (included)
Pressure Specifications (222A & 223A)
The 160A series Intelligent Digital Pressure Modules are available for gauge, vacuum and absolute pressure from -15 psi to 10,000 psi (-1 bar to 700 bar). Accuracy from 0.02% FS includes operation over 14°F to 122°F (-10°C to 50°C), one year stability and calibration uncertainty. For detail specification refer to pressure modules datasheet.
-
